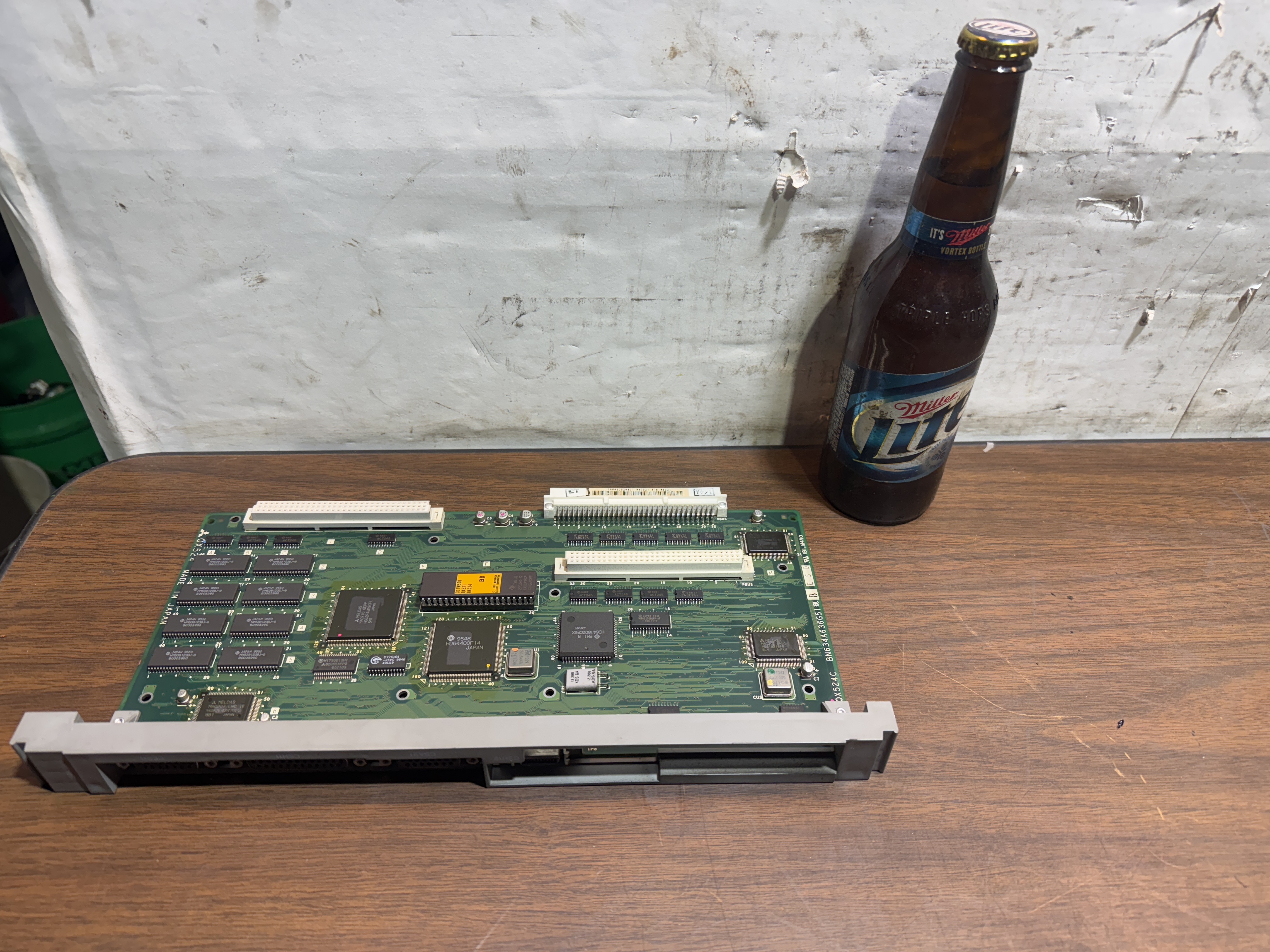

Mitsubishi QX524C Graphic Display Board BN634A636G51 TN842C524G01
For sale is a Mitsubishi QX524C Graphic Display Board BN634A636G51 TN842C524G01.
Mitsubishi Electric QX524C CRT controller graphic display and video
communication board, designed for use in Mitsubishi MELDAS (M-Plus and
T-Plus) as well as Mazak Mazatrol CNC control systems.
Features part numbers BN634A636G51 and TN842C524G01. The back of the PCB
also shows marking BN634A636H01.
This unit is equipped with multiple integrated circuits, male connector
pins, and a side bracket housing three D-sub communication ports.
The board is in clean cosmetic condition with no visibly damaged or
burned components. It is assumed to be untested. Only the pictured
circuit board is included.
