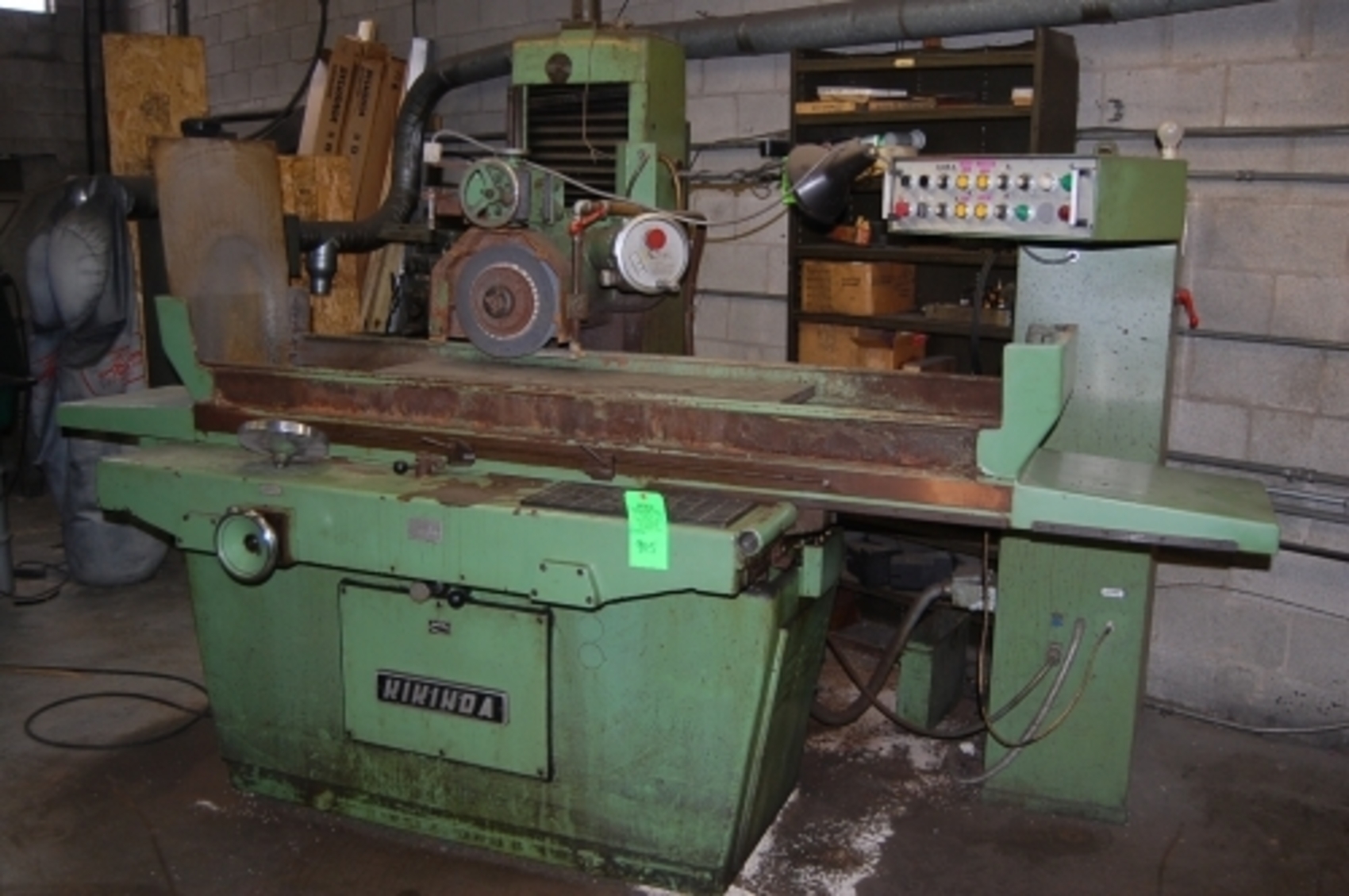

Kikinda Model URB-1000-A 12"x 40"Automatic Hydraulic Surface Grinder
For sale is a Kikinda Model URB-1000-A 12" x 40"
Hydraulic Surface Grinder.
* Kikinda Model URB-1000-A 12" x 40" Hydraulic Surface Grinder;
* Serial Number: 7624;
* 12" x 40" Electromagnetic Chuck,
* Incremental Downfeed,
* Wheel Dresser,
* Coolant System,
* Push Button Control
Parts and service for Kikinda grinders
are supplied by:
Mr. Laszlo Kovac
LK Grinding Service
607 Middle Holland Road
Holland, PA 18966
(215) 932-4000
Work table area
Maximum grinding length
Maximum grinding width
Maximum distance from centerline of spindle to top
of work table
Maximum longitudinal travel of table at maximum
speed
Maximum cross travel of work table
Cross feed range
Table speed range, longitudinal
Grinding wheel size
Grinding wheel speed
Downfeed handwheel graduated in increments to
Fine downfeed adjustment in increments of
Automatic incremental downfeed rate
11.8" x 59"
39.4"
11.8"
19.7"
40.2"
11.8"
.08" to .800"
3.28 to 82 F.P.M.
11.8" diameter x 2" wide x 5" bore
1,500 R.P.M.
.0004"
.00008"
.0002" to .0008"
Equipped With
Hydraulically actuated longitudinal table travel
with manual movement accomplished
by means of a handwheel engaging a pinion into a rack fixed
to the table
Electromechanically actuated cross feed
Hardened and ground longitudinal and cross ways. One way on the
cross feed ways
is flat with the other being a "V" way.
The longitudinal ways are both flat. Both sets
of way hold caged ball bearings to
give accurate and effortless movement.
Wheelslide mounted in anti-friction needle
bearings mounted in bearing cages
Electromechanically actuated incremental
downfeed of grinding wheelhead
Automatic grinding cycle providing for
coarse downfeed to the wheel followed by
a fine downfeed and wheel sparkout.
Wheelhead return at the end of the grinding
cycle is operator controlled.
Automatic downfeed actuated at either end of
the hydraulic feed or at the end of
outward cross feed only
Over-the-wheel manaul dressing attachment
with automatic compensation
Motorized power rapid traverse to grinding wheelhead
FUTABA single-axis digital readout for vertical
travel of grinding wheelhead
11-7/8" x 39" Electromagnetic chuck with variable hold control
(2) Wheel flanges
Self-contained hydraulics located in base of grinder
External coolant pump and tank with magnetic separator
5.4 H.P. spindle drive motor
Free-standing electrical control cabinet
The X axis handle is broke and is supplied separately, I will try
to fix it soon and update the description.
